Type: Shaker Screen

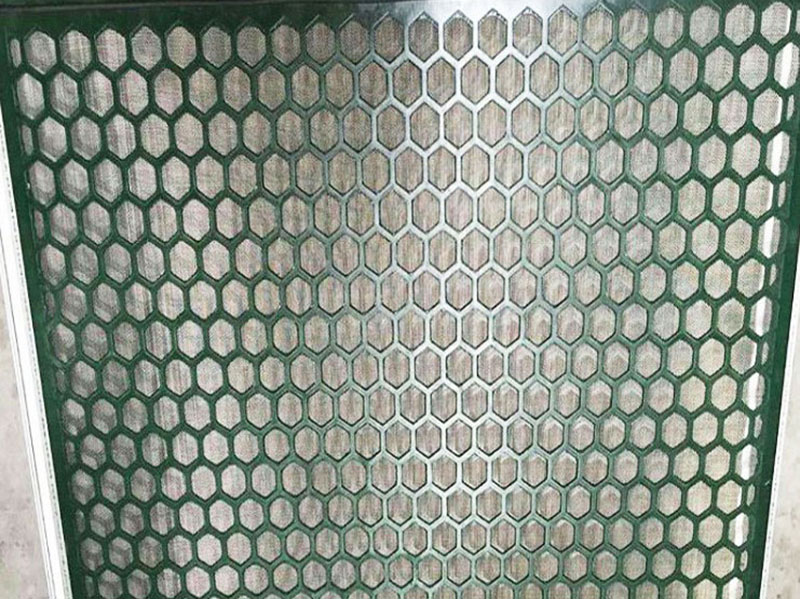

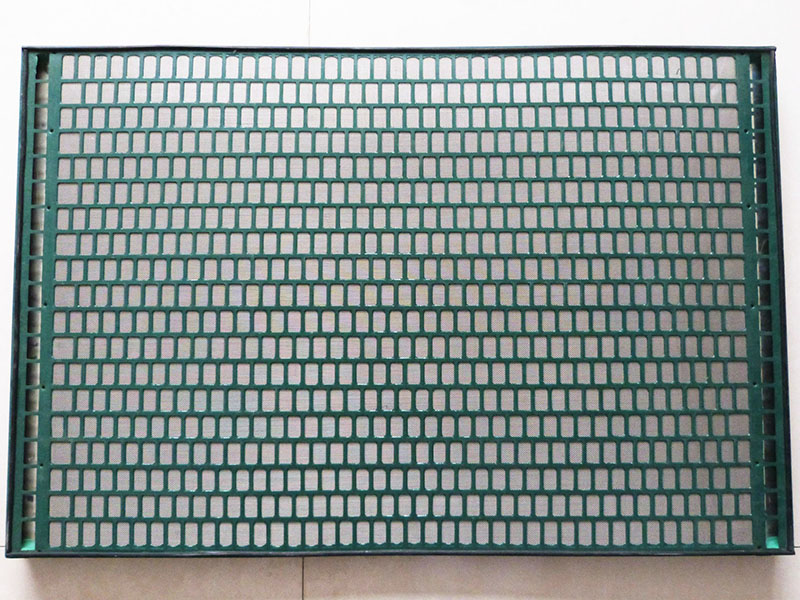

Hole Shape: Hexagonal, rectangular, square
Feature: Durable and longer life
Application:Replacement shaker screen, Oil and petroleum drilling filter screen
Material: Stainless Steel 304 or 316
Thickness: 0.5-3.2 mm or customized
Width: 570-1141 mm or customized
Other Name: Shale Shaker Screen

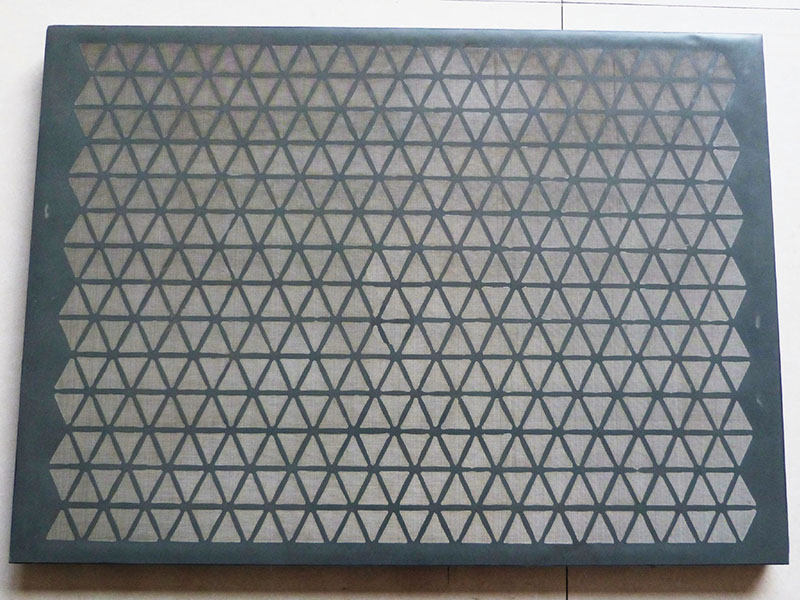

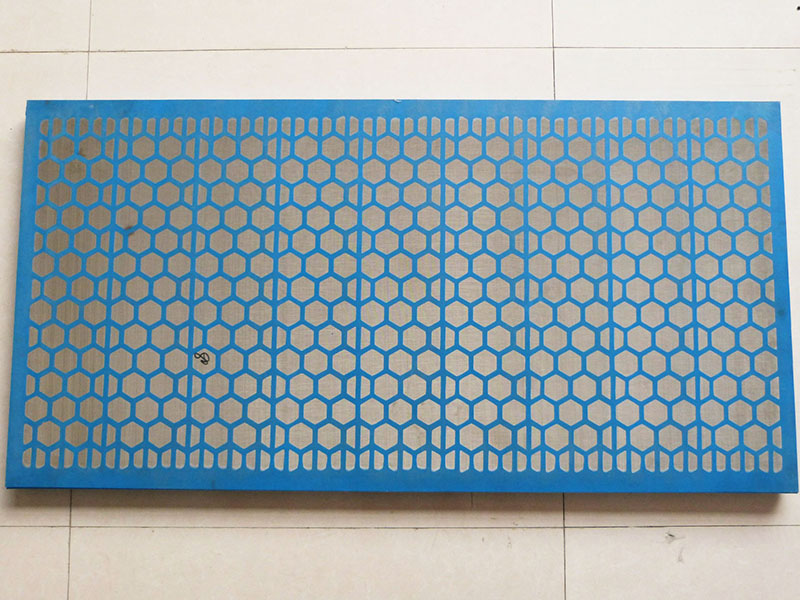

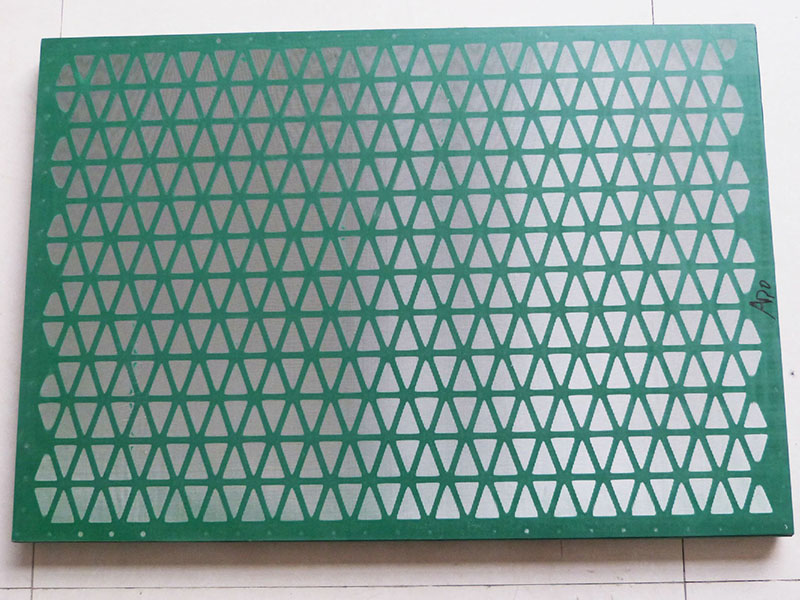

A commonly used petroleum vibrating screen consisting mainly of a steel frame and 2 to 3 layers of stainless steel mesh tightly bonded to the frame.The frame is made of high strength square steel pipe or flat steel welded, and has several reinforced reinforcement bars. The mesh cloth can be combined with the frame through metal lining.Or directly bonded to the frame each screen is equipped with a special rubber plug to repair mesh damage.I plant according to the needs of different customers to manufacture a variety of sizes of steel frame screen.

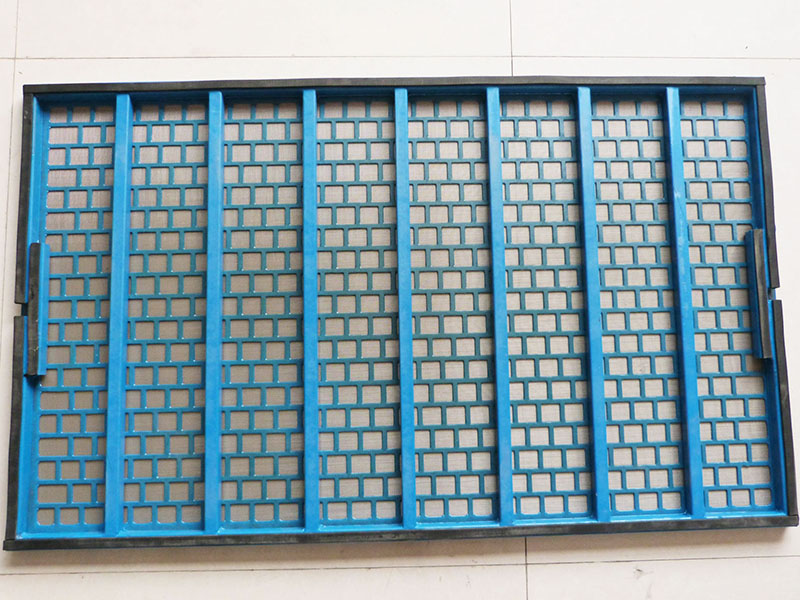

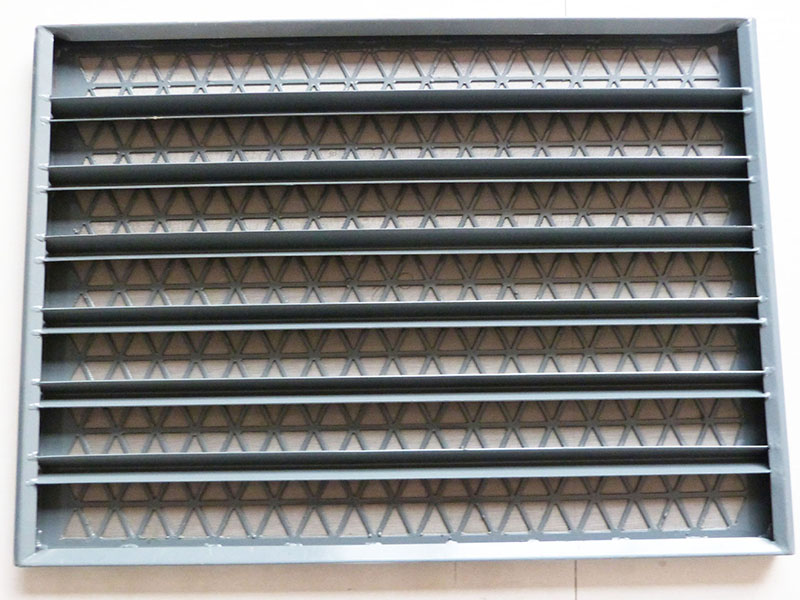

Steel Frame shaker screen panels use 304 or 316 stainless steel, it infinitely enhance the screen intensity and endurance, get a better filtering effective. each screen attach a specific rubber plug together to repair damage, can save the time to replace the screen, increase the efficiency and reduce the cost.

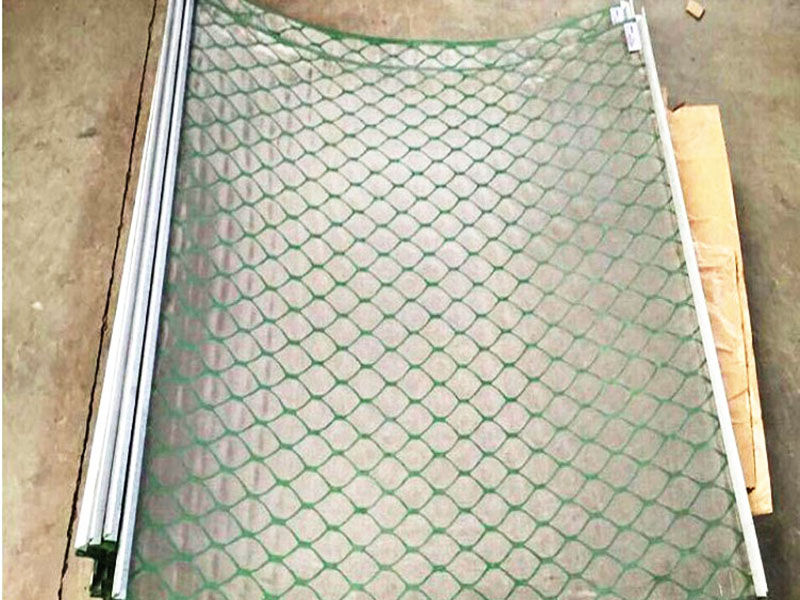

Composite shaker screen use the 304 stainless steel materials. are constructed with 2-4 wire cloth layers combined compositely together, without steel backing plate, can get an effective filtering area and save the shaker screen lifetime.
The characteristics of this kind of screen are as follows:
1. The mesh number of each layer of screen cloth is different. Accurate and reasonable collocation can make the screen effect more meticulous.
2, high strength steel frame and support bar, as well as moderate tension screen, form a reliable whole, greatly increasing the screen can withstand the flow, strength and service life.

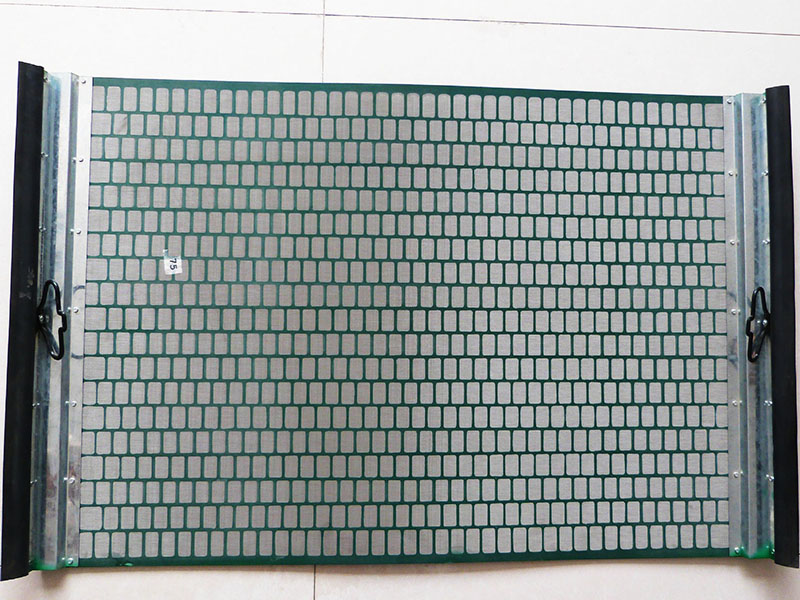

3. Wedge-shaped quick tensioning device makes the screen more convenient and saves the time of stopping and replacing.
4, the lining of the grid will be divided into a number of independent small mesh surface, can prevent local damage over expansion, at the same time, special rubber plug to repair the damage, can save time, reduce the cost of use.
